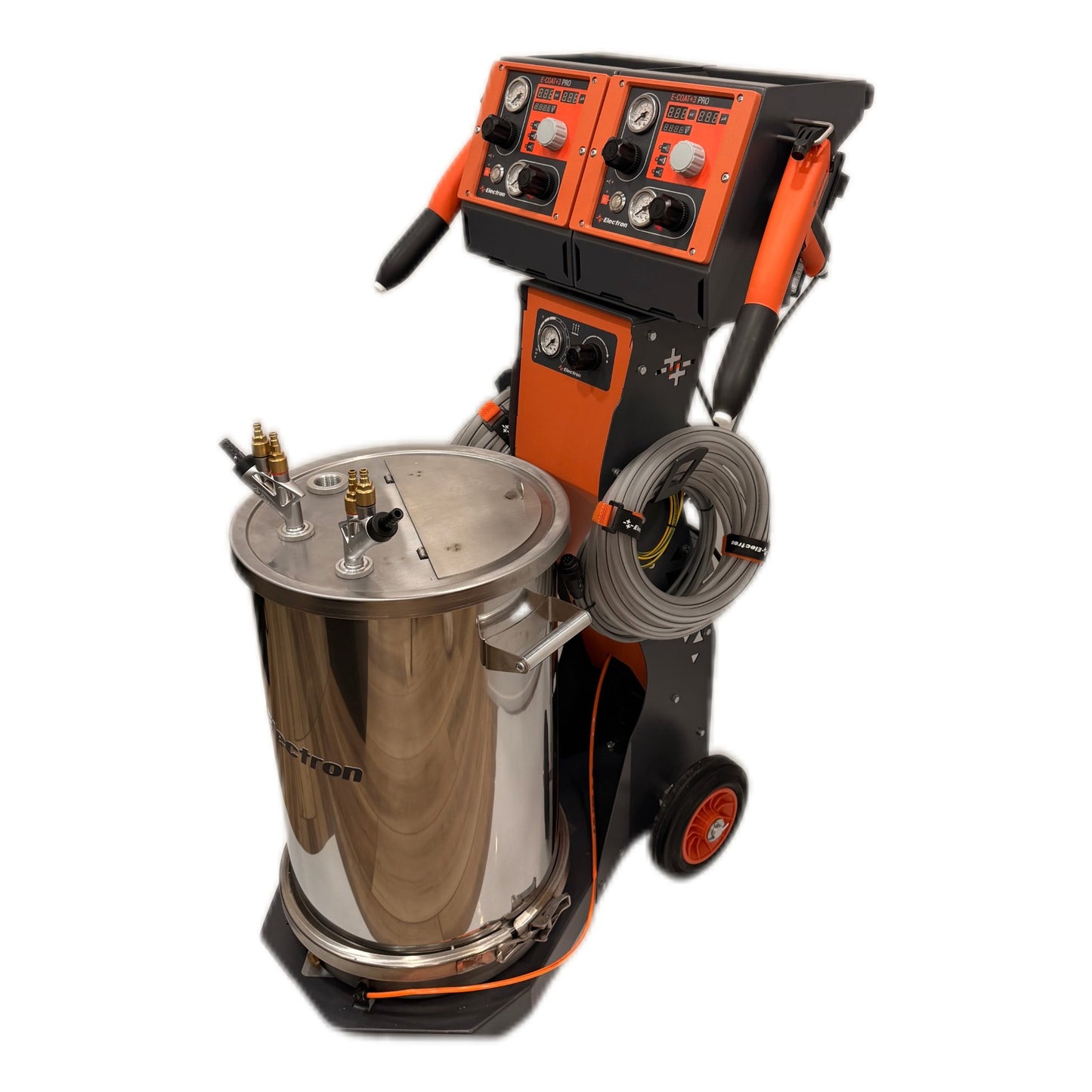

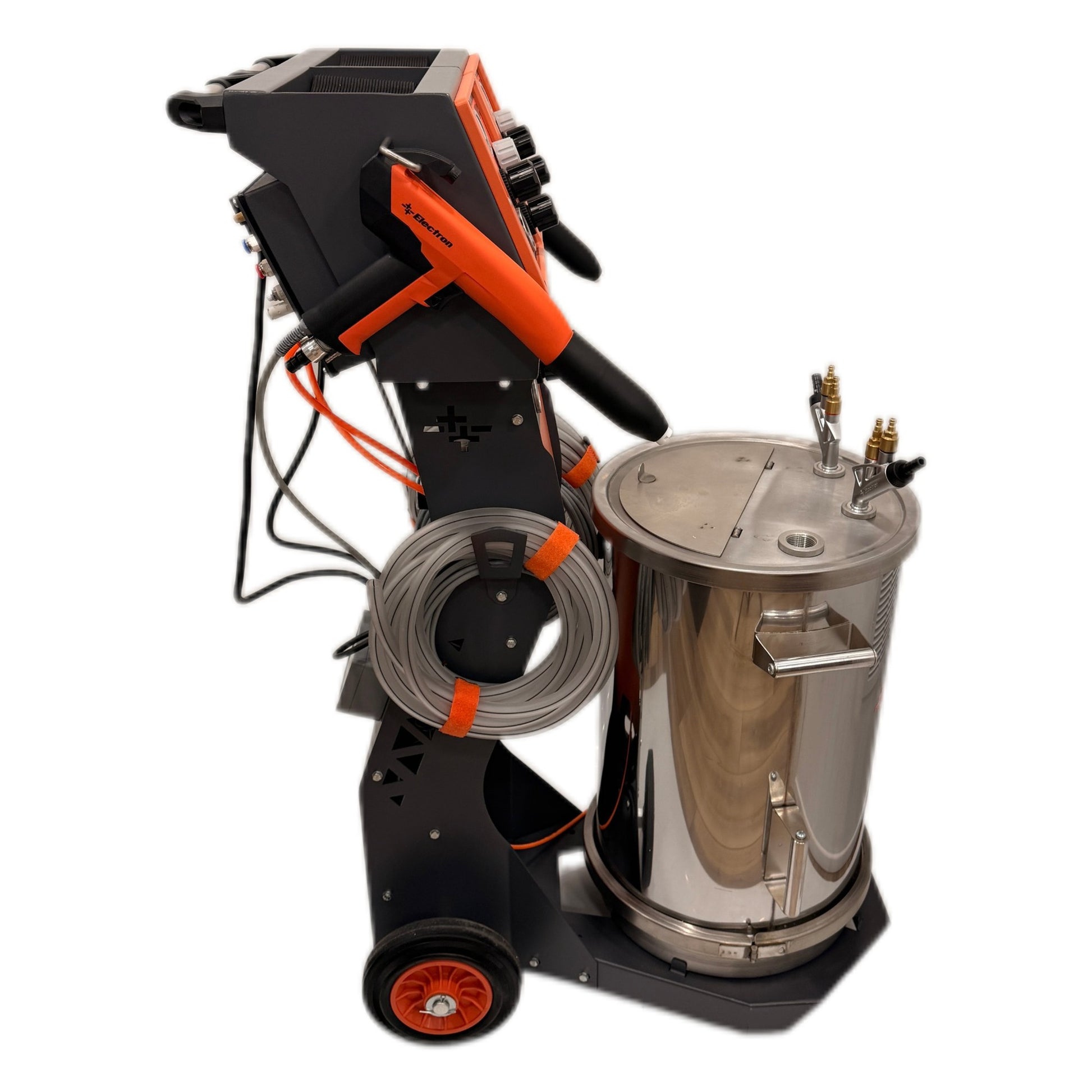

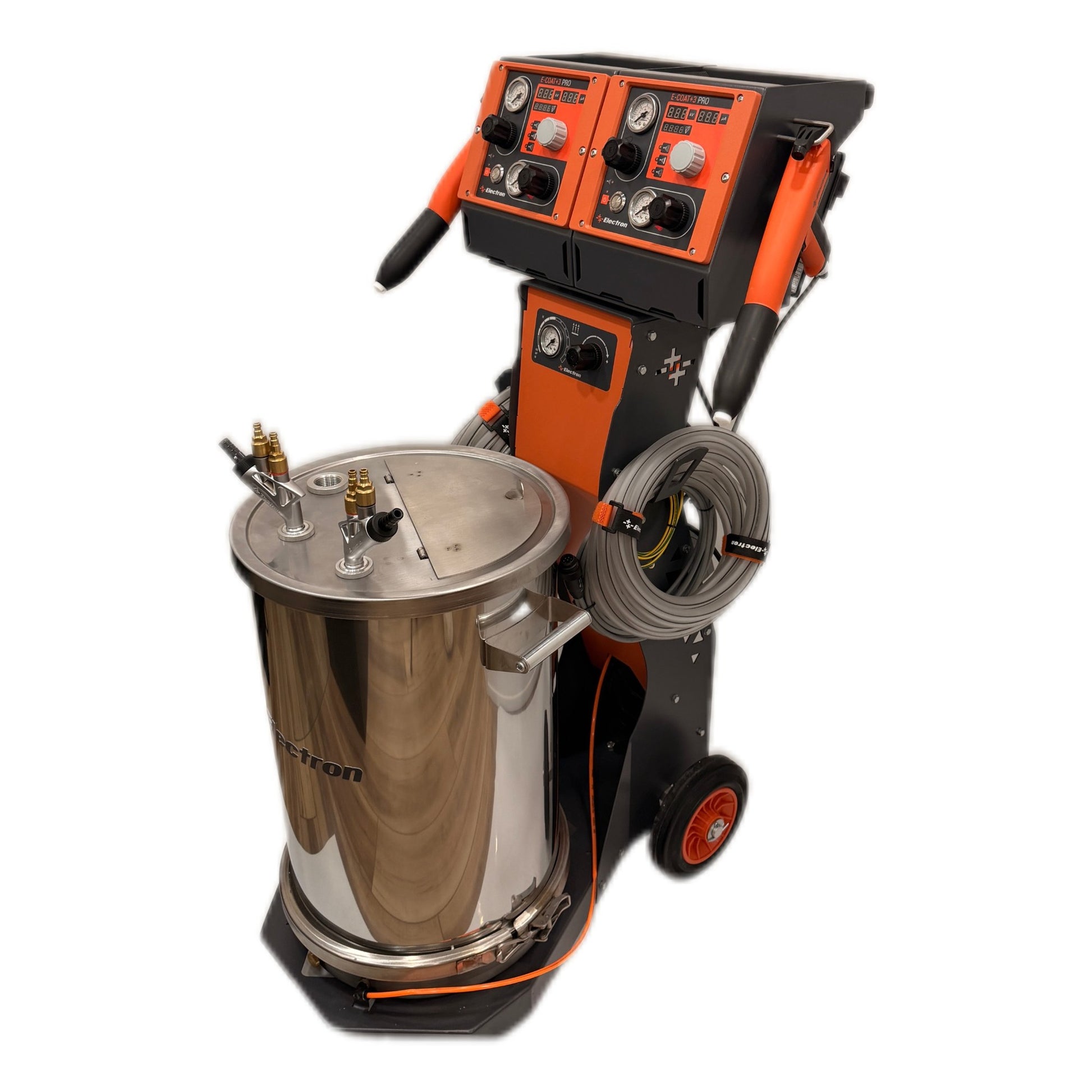

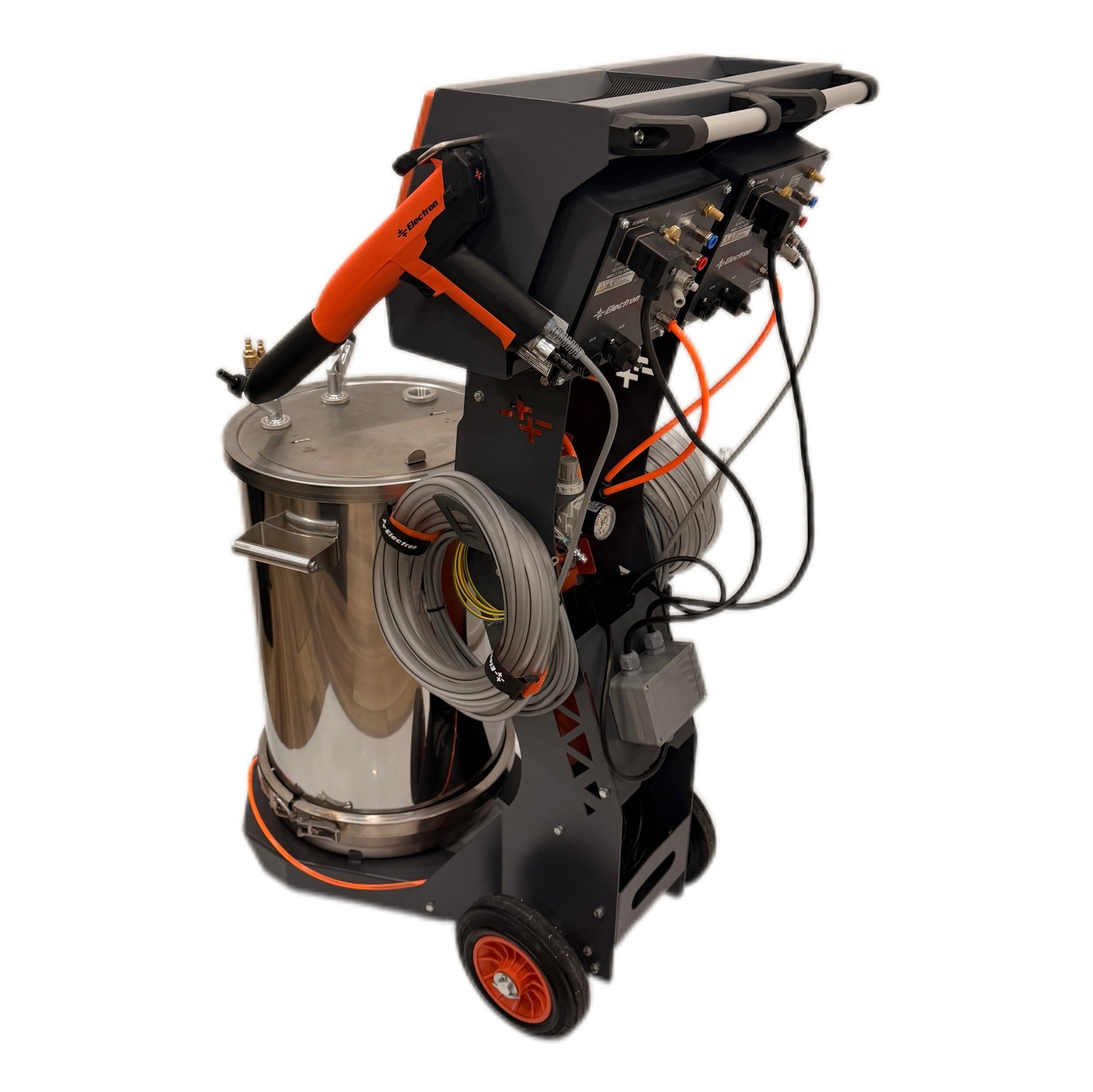

Electron +3 Pro HD (Dual Head Hopper/Fluidizer)

Electron +3 Pro HD (Dual Head Hopper/Fluidizer)

- Full 2 year warranty on the complete system except for wear/consumable items.
- Extended warranty available at $295 per year, up to a maximum of 5 years total.

Hopper Configuration:
The Electron +3 Pro HD (Hopper) comes with a 50Lt stainless steel hopper. Hopper setups are most common with companies that spray a lot of the same color powder. This is because hoppers are the best form of powder delivery, they help prevent chunks and allow for the softest most consistent powder delivery. The system features 2 guns, 2 controllers, 2 pumps, 1 hopper and 2 pickup tubes to allow for 2 operators to spray the same powder at the same time out of 1 system.

Electron Pro +3 Controller:
- LED Display for easy visibility of kV and uA setpoint.
- Regulators to control the powder transfer and powder assist air. This offers a reliable and easy way to adjust the powder cloud output.
- Rotary control knob for quick Electrostatics and program changing.
- Up to 50 customizable programs.
- 3 Factory presets: 1 for first coat easier parts, 1 for recoat or multicoat parts, and 1 for a first coat on a more complex item.
- Auxiliary control for hoppers and boxfeed configurations.

Electron +3 C2 Manual Gun:
- 100 kV Max output voltage.
- 100 uA Max output current.
- Built-in gun hook.
- Comes with flat spray and round jet/deflector nozzles.
- Rinsing air to keep the electrode cool and clean, allowing for a longer life for the electrode.
- Quick connect for the powder hose allows fast and easy cleaning of the powder hose and gun.
- 7 m (23 ft) of powder hose, rinsing line, and gun cable.

Electron V3 Powder Pump:
- 45 degree angle pump allows for a softer, more consistent powder cloud. An upgrade over the previous 90 degree angle pump.
- 2 Piece pump insert allows for cheaper replacement parts and the ability to rebuild the pump when needed.
- Color coded air lines prevent confusion as to how the air should be connected to the pump.
- Pump filters help prevent contaminants from getting into your powder and feature a duck bill design which blocks air from traveling backwards into the controller, preventing system damage when cleaning.

The First In Finishing Promise:
- Unlimited lifetime technical support via phone at (317) 483-3361 or email at Info@finf.us.
- Parts availability: FINF stocks locally here in Indiana and supports all systems nationwide, providing same-day delivery and fast turnarounds.
- First In Finishing offers personalized, hands-on training including operation, service, and maintenance of equipment.
